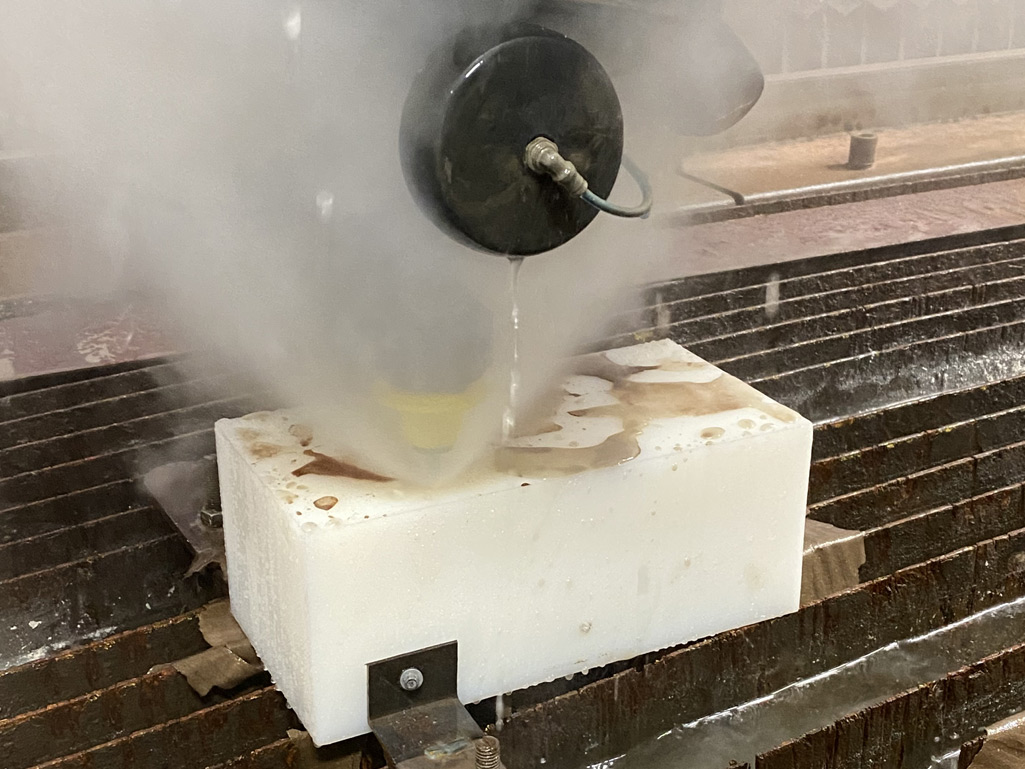

Diversified Machining & Fabrication - Mach 500 Flow Waterjet

TruBend 7036: GK recently installed a Trumpf TruBend 7036 Press Brake for high-quality production of smaller parts and pieces.

The TruBend 7036 is an ergonomic high-speed machine for bending small and medium-sized parts under the best working conditions while saving space for production. Due to the direct drive and the automatic angle measuring system, GK Machine can now achieve a high output at a very high level of quality for smaller parts and pieces in our production system. The setup operation is also extremely fast and safe.

The operator can work ergonomically with a standing and sitting aid as well as adjust the support table individually. It was the first bending machine to have an ergonomics certificate. The TruBend 7036 will help GK Machine achieve an increase of overall productivity, decrease the time per part, especially with high speeds and increase in acceleration values on the bending machine.

TruBend 7036 Specifications:

Press Force 360 kN
Bending Length 1020 m
Width between Columns 932 mm
Usable Open Height 295 mm
Throat Depth 150 mm

TruBend 7036 Weight Dimensions:

Length 1900 mm
Width 1340 mm
Height 2380 mm

Trumpf Press Brakes

Forming Tolerance

For parts 36″ x 36″ or smaller. For larger parts, add 0.002″/foot.

THICKNESS + / –
18ga – 12ga 1/32
3/16 – 1/2 1/16
5/8+ 3/32

Angular = +/- 1 degree

* Tolerance listed is per bend. Standard tolerances are listed, tighter is attainable with sample pieces for tuning.

Minimum Guidelines

Bend table minimum guidelines chart is for steel (A36) up to a 90* single bend ONLY. See notes below for other bends or alternate materials. Standard radius is equal to material thickness.

MATERIAL THICKNESS 8X THK STANDARD DIE WIDTH MIN FLANGE LENGTH LONGEST BEND MAX DEGREE
(.048)18 ga 0.38 0.384″ (10MM) 0.317 159* 35 OR HEM
(.060)16 ga 0.48 0.384″ (10MM) 0.317 159* 35 OR HEM
(.075)14 ga 0.60 0.472″ (12MM) 0.361 159* 35 OR HEM
(.105)12 ga 0.84 5/8″ (16MM) 0.440 159* 35 OR HEM
(.120)11 ga 0.96 5/8″ (16MM) 0.440 159* 35 OR HEM
(.135)10 ga 1.08 5/8″ (16MM) 0.440 159* 35 OR HEM
.188 Plate 1.50 1″ (30MM) 0.875* 172 35
.250 Plate 2.00 2″ (50MM) 1.375 172 35
.313 Plate 2.50 2″ (50MM) 1.375 159 35
.375 Plate 3.00 3″ (70MM) 1.875 159 35
.500 Plate 4.00 4″ (100MM) 2.500 90 35
.625 Plate 5.00 6″ (150MM) 3.750 80 35
.750 Plate 6.00 6″ (150MM) 3.750 80 35
1.00 Plate 8.00 6″ (150MM) 4.000 80 35
